HDL Leading and Trailing Edge 1CH 6A Dimmer (HDL-M/D01.1)

191,00
(236,84 inc tax)
In stock
+
Add to Wishlist
Product Description

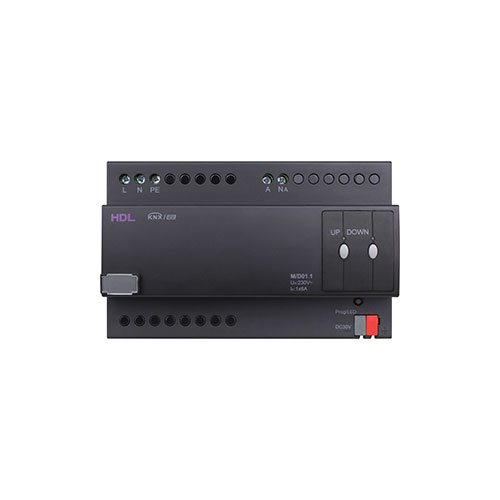

The HDL KNX M/D01.1 is a MOSFET dimmer which supports both leading edge and trailing edge dimming. Control over inductive, resistive, and capacitive loads is possible, or the modules on-board manual buttons.

Different load Types

Both leading and trailing edge modes are able to be used on the HDL KNX M/D01.1. The leading edge supports both Inductive loads and resistive loads, while the trailing edge supports capacitive loads and resistive loads. This enables the operation of incandescent bulbs, motors, and dimmable LED lamps.

Protection

To prevent damage to the system and unit, a variety of protective features are included. With an overheat sink, electronic short circuit protection, overload protection, overheat power reduction protection, and a temperature alarm, safety is guaranteed.

Scene Recovery

When the dimmer has been powered off, it is able to automatically restore the last scene used when powered on again. This gives the user a system that remembers their previous scene, and requires no further control.

Manual control

With manual control via on board buttons, the end user is able to immediately manipulate the switching on & off, and dimming controls. This enables faster fault finding, and reduces the time taken during installation.


● The Dimmer Actuators can dimming for 1 channel independent load.
● Leading Edge dimming or Trailing Edge dimming for dimmer.
● Parallel channels to form a larger current output .
● The dimmers may be used for dimming ordinary incandescent lamps, low voltage halogen lamps and other light sources which support leading or trailing edge technology
● The module functions : Statistics total ON time, Status respone, Status recovery, Over temperature protection, Read temperature, Over temperature alarm, Staircase light, Flashing light, Scene control, Scene dimming, Sequence
control, Threshold control, Heating actuator (PWM).
● Short circuit protection, over load protection, over Heat protection


Datasheet KNX Trailing Edge 1CH 6A Dimmer


Performance parameter:

-Working Voltage : 21-30V DC
-Communication: KNX/EIB
-Dynamic Current: < 15 mA
-Static Current: < 5 mA
-KNX terminals: KNX Bus Terminal – (Red /black) 0.6-0.8mm Diameter Single Core
-Rated Voltage: 220-250V AC (50/60 Hz)
-User Controls: Manual Over-ride switch for each channel, KNX LED & button programming
-Output Terminals: Line In, Line Out for each channel 2.5-4mm2
-Output Current : 6A/Ch, 1Ch

Approved:

-CE
-KNX

MPN
:
HDL-M/D01.1
