TP-Link VIGI C330(2.8mm) v1.20, VIGI 3MP Outdoor Full-Color Bullet Network Camera

Outdoor, Bullet, 30m, 2.8mm, PoE, Microphone, ONVIF, H265
64,44
(79,91 inc tax)
032.2341
In stock
+
Add to Wishlist

Εγγύηση:

  • 2 χρόνια

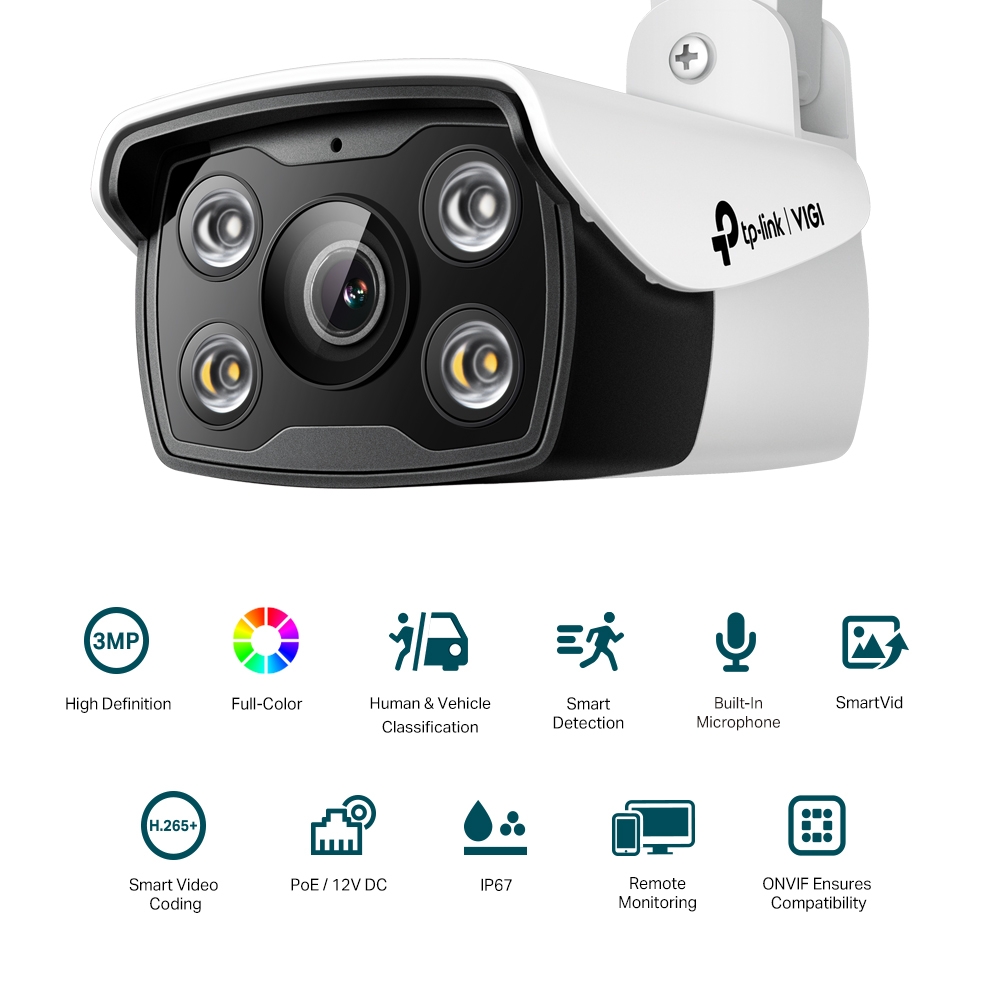

VIGI 3MP Outdoor Full-Color Bullet Network Camera

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
  • IP67 Waterproof: Reliable IP67 for stable outdoor performance.

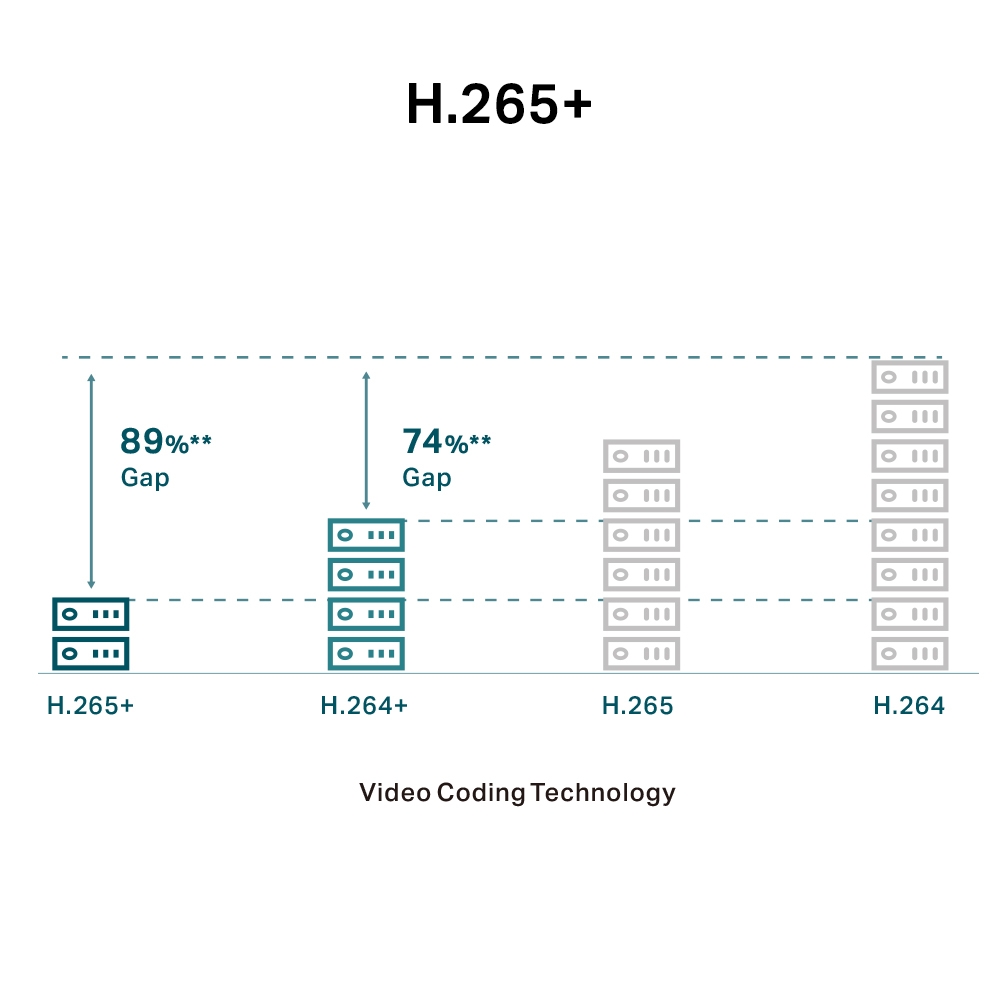

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

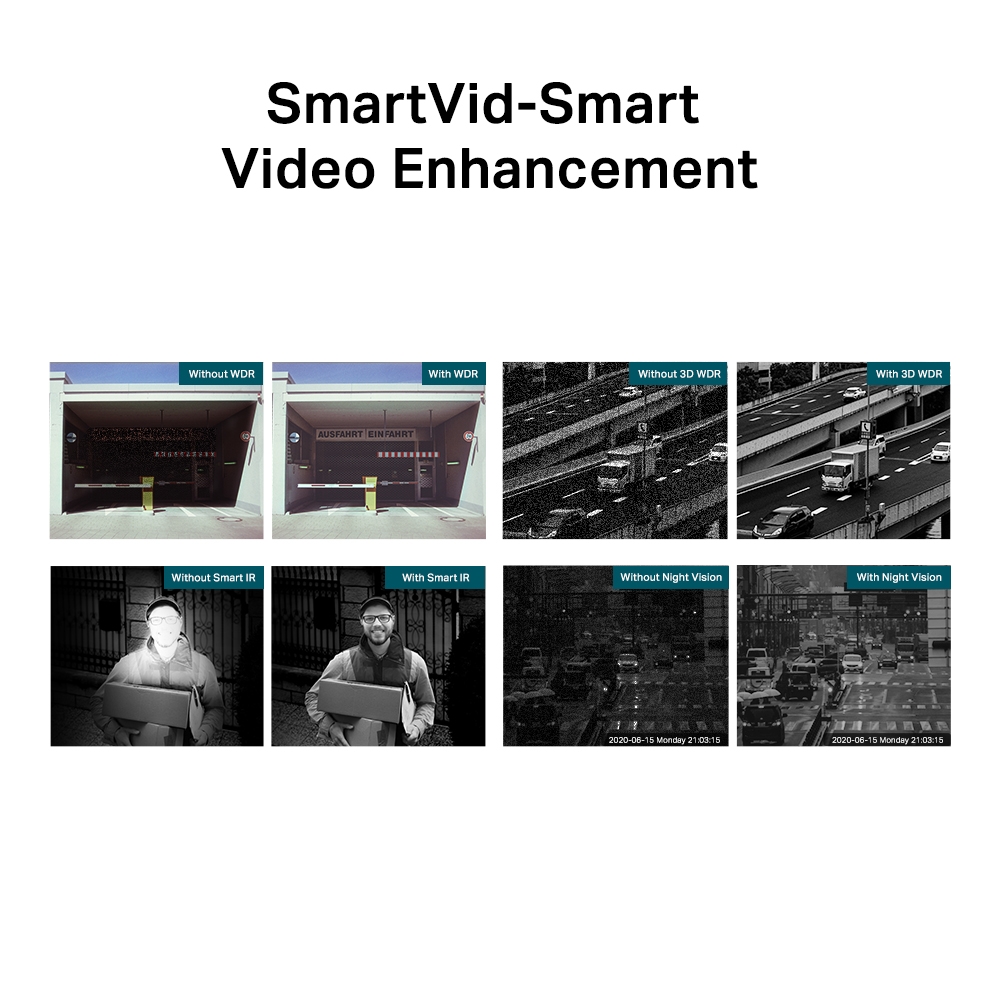

  • Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

CAMERA
Image Sensor1/2.8” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchDay/Night/Auto/Schedule-Switch
LENS
TypeFixed Focal Lens
Focal Length2.8/4/6 mm
ApertureF1.6
FOV2.8 mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° 4 mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° 6 mm: Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°
Lens MountM12
DORI Distance2.8 mm: Detect: 52 m (170 ft) Observe: 22 m (71 ft) Recognize: 10 m (34 ft) Identify: 5 m (17 ft) 4 mm: Detect: 70 m (230 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft) 6 mm: Detect: 100 m (327 ft) Observe: 41 m (136 ft) Recognize: 20 m (65 ft) Identify: 10 m (33 ft)
VIDEO
Max. Resolution2304 × 1296
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LEDQuantity: 2 Range: 30m Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
RangePan: -90° to 90° Tilt: -90° to 90°
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationN/A
Audio InputN/A
Audio OutputN/A
Audio CompressionN/A
Audio Sampling RateN/A
Environment Noise FilteringN/A
Audio Bit RateN/A
NETWORK
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
CloudYes
ONVIFYes
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
On-board StorageN/A
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerN/A
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push
GENERAL
Package ContentsVIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Storage Humidity95% or Less (Non-Condensing)
Operating Humidity95% or Less (Non-Condensing)
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.26 Kg
Gross Weight0.4 Kg
Power ConsumptionMaximum: 5.4 W Typical (Day Mode): 1.93 W Typical (Night Mode with IR LED): 2.84 W Typical (Night mode with White LED): 4.35 W
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
ProtectionIP67
Product Dimensions (L x W x H)174 × 78 × 71 mm
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

MPN
:
VIGI C330(2.8mm) v1.20
EAN
:
4895252501773
Indoor/Outdoor:
Outdoor
Camera Type:
Bullet
IR Distance:
30m
Φακός:
2.8mm
WiFi:
PoE:
Microphone:
Speaker:
Micro SD:
ONVIF:
Audio IN/OUT:
Alarm IN/OUT:
H265:
PoC (Power over Coaxial):
PIR Sensor:
White Light:
Thermal:
Audio over Coax:

Datasheet (Datasheet-VIGI_C330_2.8_4_6mm__1.0.pdf, 382 Kb) [Download]
