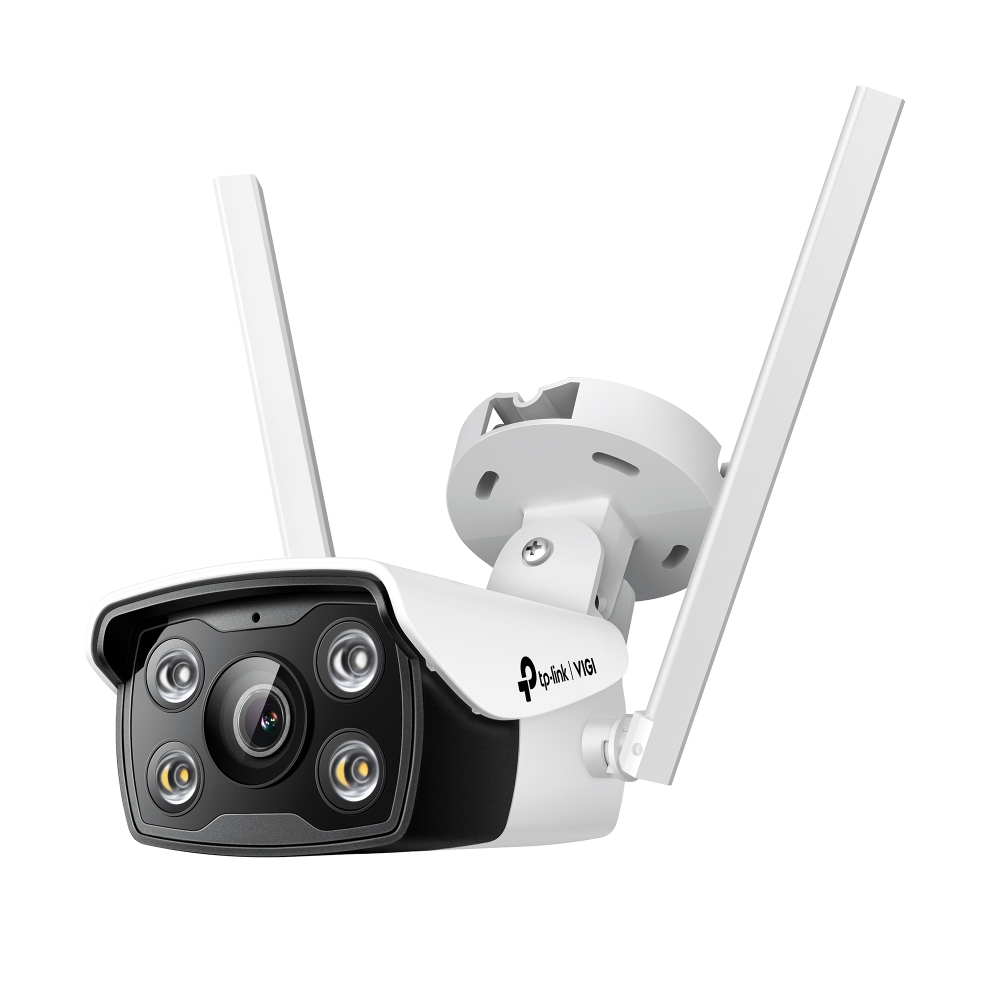

TP-Link VIGI C340-W(4mm) v2.0, VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

Outdoor, Bullet, 30m, 4mm, WiFi, Microphone, Speaker, Micro SD, ONVIF, H265
88,63
(109,90 με ΦΠΑ)
032.2405
Άμεση
+
Προσθήκη στα αγαπημένα

Εγγύηση:

  • 2 χρόνια

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

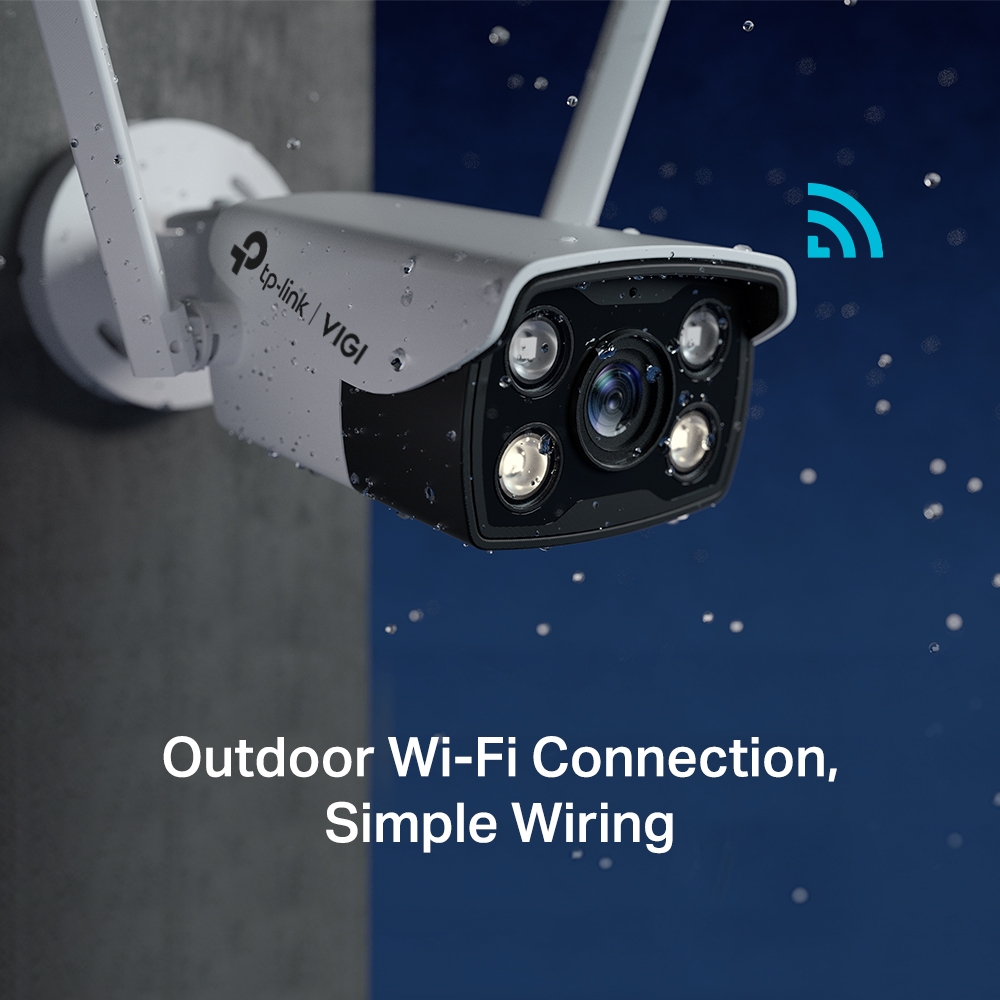

  • Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).


CAMERA
Image Sensor1/3” Progressive Scan CMOS
Day/Night SwitchUnified/ Scheduled/ Auto
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
LENS
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Lens MountM12
DORI DistanceDetect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: -90° to 90°, Tilt: -90° to 90°
ILLUMINATOR
IR LEDQuantity: 2 Range: 30m Wavelength: 850nm
White LEDQuantity: 2 Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
WIRELESS
StandardsIEEE 802.11b/g/n
WiFi ChannelsUN: 1-13 US: 1-11
Frequency2.4 GHz
Wireless Transmit PowerHigh
Auto Wireless ChannelN/A
Wireless StatisticsN/A
Throughput MornitorN/A
Radio BandwidthAuto: N/A 20M: Yes 40M: Yes
Wireless Rate11Mbps(802.11b) 54Mbps(802.11g) 150/300Mbps(802.11n)
Wireless SecurityPWPA/WPA2-PSK
Wireless ModeAP, AP Client
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentsVIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories
MaterialPlastic
Net Weight0.31 Kg
Gross Weight0.6 Kg
Power Supply9V DC/0.85A, 5.5mm Coaxial Power Plug
AntennaQuantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
ProtectionIP66
Product Dimensions (L x W x H)80× 173 × 71 mm (excluding antennas)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ



MPN
:
VIGI C340-W(4mm) v2.0
EAN
:
4897098683675
Indoor/Outdoor:
Outdoor
Τύπος Κάμερας:
Bullet
Υπέρυθρος Φωτισμός:
30m
Φακός:
4mm
WiFi:
PoE:
Microphone:
Speaker:
Micro SD:
ONVIF:
Audio IN/OUT:
Alarm IN/OUT:
H265:
PoC (Power over Coaxial):
PIR:
White Light:
Thermal:
Audio over Coax:

Datasheet (Datasheet-VIGI_C340-W_4mm__2.0.pdf, 398 Kb) [Λήψη]
