TP-Link VIGI C540(4mm) v2.0, VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera

Outdoor, Speed Dome (PTZ - Ρομποτική), 30m, 4mm, PoE, Microphone, Speaker, Micro SD, ONVIF, H265
120,89
(149,90 με ΦΠΑ)
032.2345
Μη Διαθέσιμο

Εγγύηση:

  • 2 χρόνια

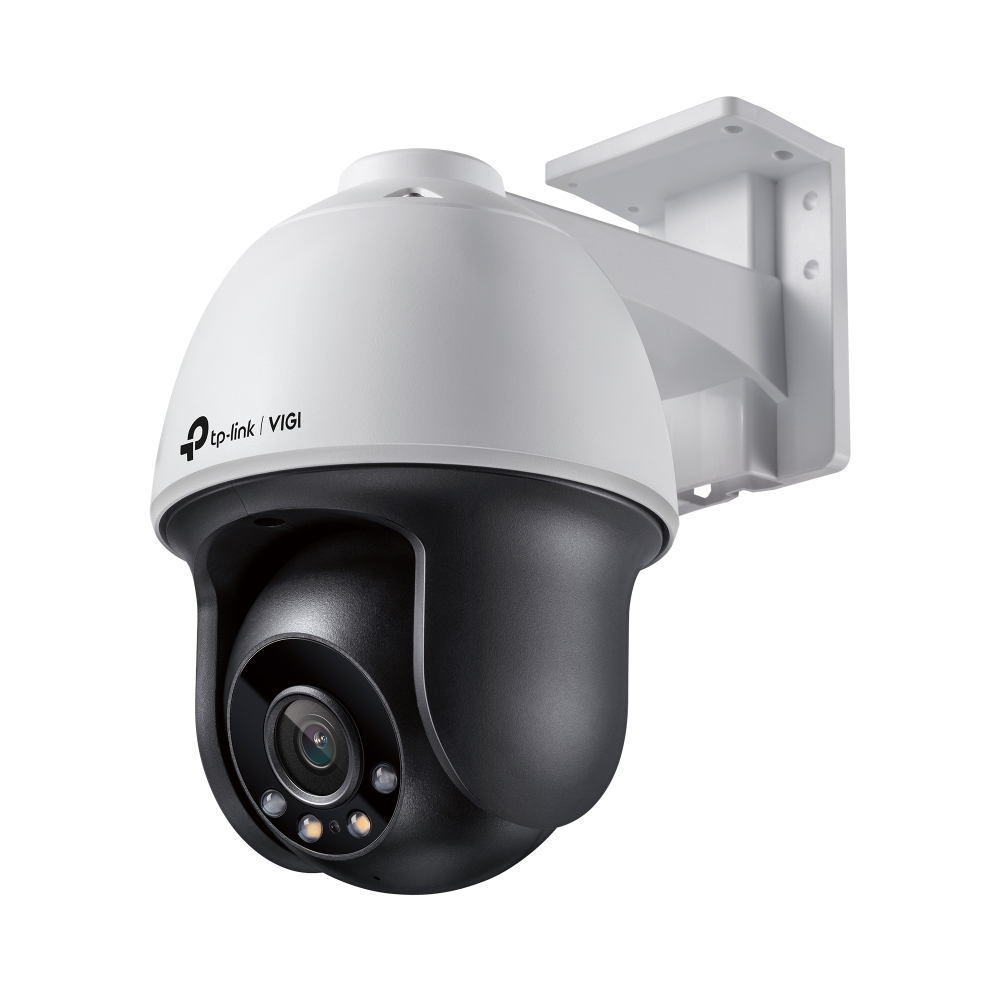

VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

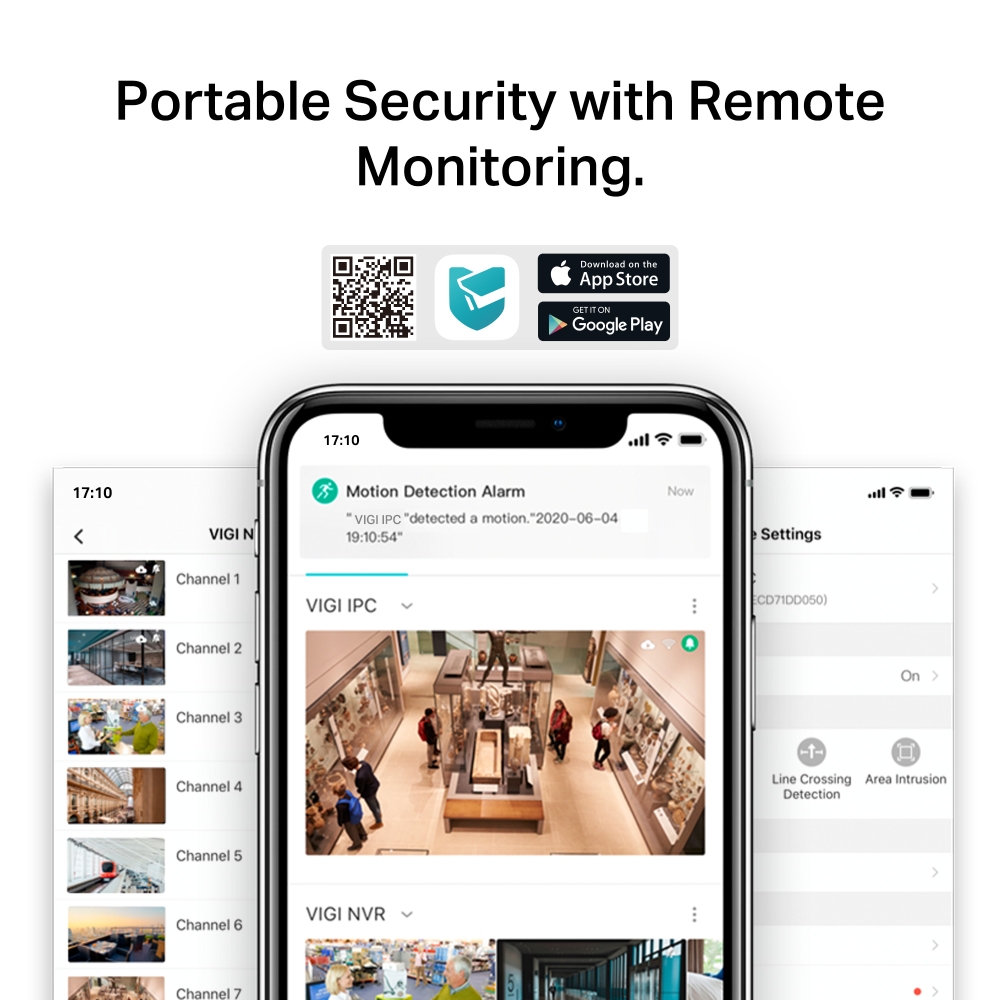

  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Minimum Illumination0 lux with IR/white Light
Day/Night MechanismIR Cut Filter
LensFixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture4 mm: F1.6
Lens MountM12
Viewing Angle(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Digital ZoomYes
IR Working Distance30m
Illumination Distance30 m
Pan/Tilt RangePan: 0° to 350°, Tilt: 0° to 120°
Weatherproof RatingIP66
Digital Noise Reduction3D DNR
WDRDWDR
NETWORK
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio InputBuilt-in Microphone
Audio OutputBuilt-in Speaker
ButtonReset Button
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
GENERAL

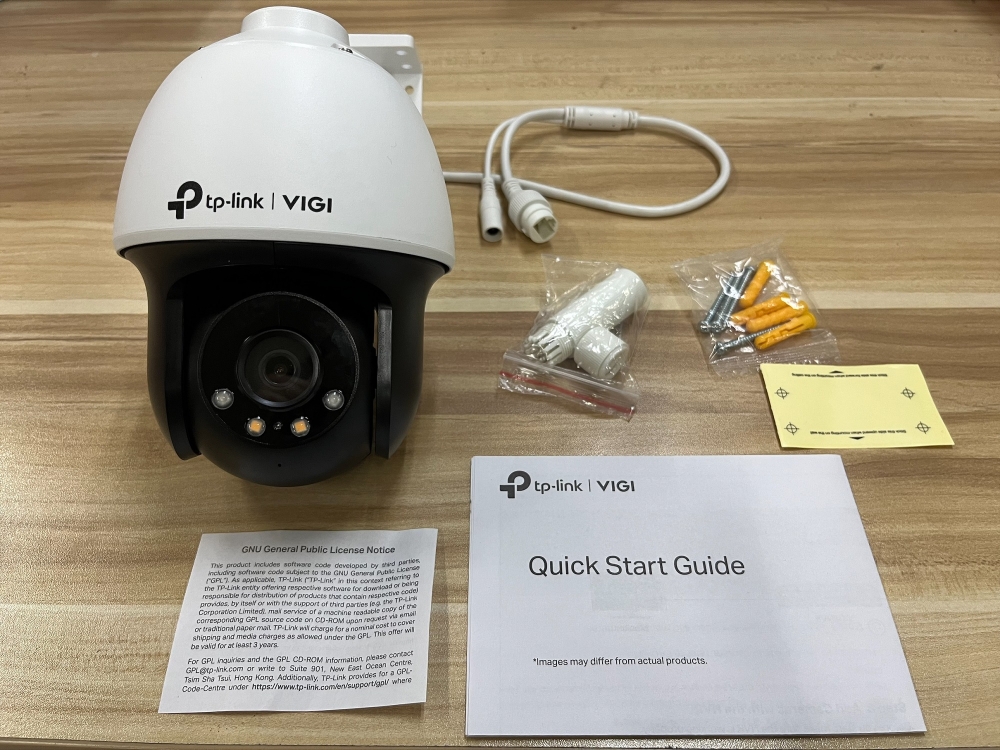

Package ContentsVIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature-30–60 °C
Dimensions( H X W X D )120 × 172 × 198 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 4)
Power Consumption12V DC: Max 14W PoE: Class 4
CertificationsCE, RCM, BSMI, VCCI, RoHS, NTRA, KC
VIDEO/IMAGE
Video CompressionMain stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Video StreamingMain Stream Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart EventArea Intrusion Detection, Line-Crossing Detection, Human Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region



MPN
:
VIGI C540(4mm) v2.0
EAN
:
4897098683781
Indoor/Outdoor:
Outdoor
Τύπος Κάμερας:
Speed Dome (PTZ - Ρομποτική)
Υπέρυθρος Φωτισμός:
30m
Φακός:
4mm
WiFi:
PoE:
Microphone:
Speaker:
Micro SD:
ONVIF:
Audio IN/OUT:
Alarm IN/OUT:
H265:
PoC (Power over Coaxial):
PIR:
White Light:
Thermal:
Audio over Coax:

Datasheet (VIGI_C540_UN_1.0_datasheet.pdf, 321 Kb) [Λήψη]

Datasheet (Datasheet-VIGI_C540_4mm__2.0.pdf, 420 Kb) [Λήψη]
