Product description

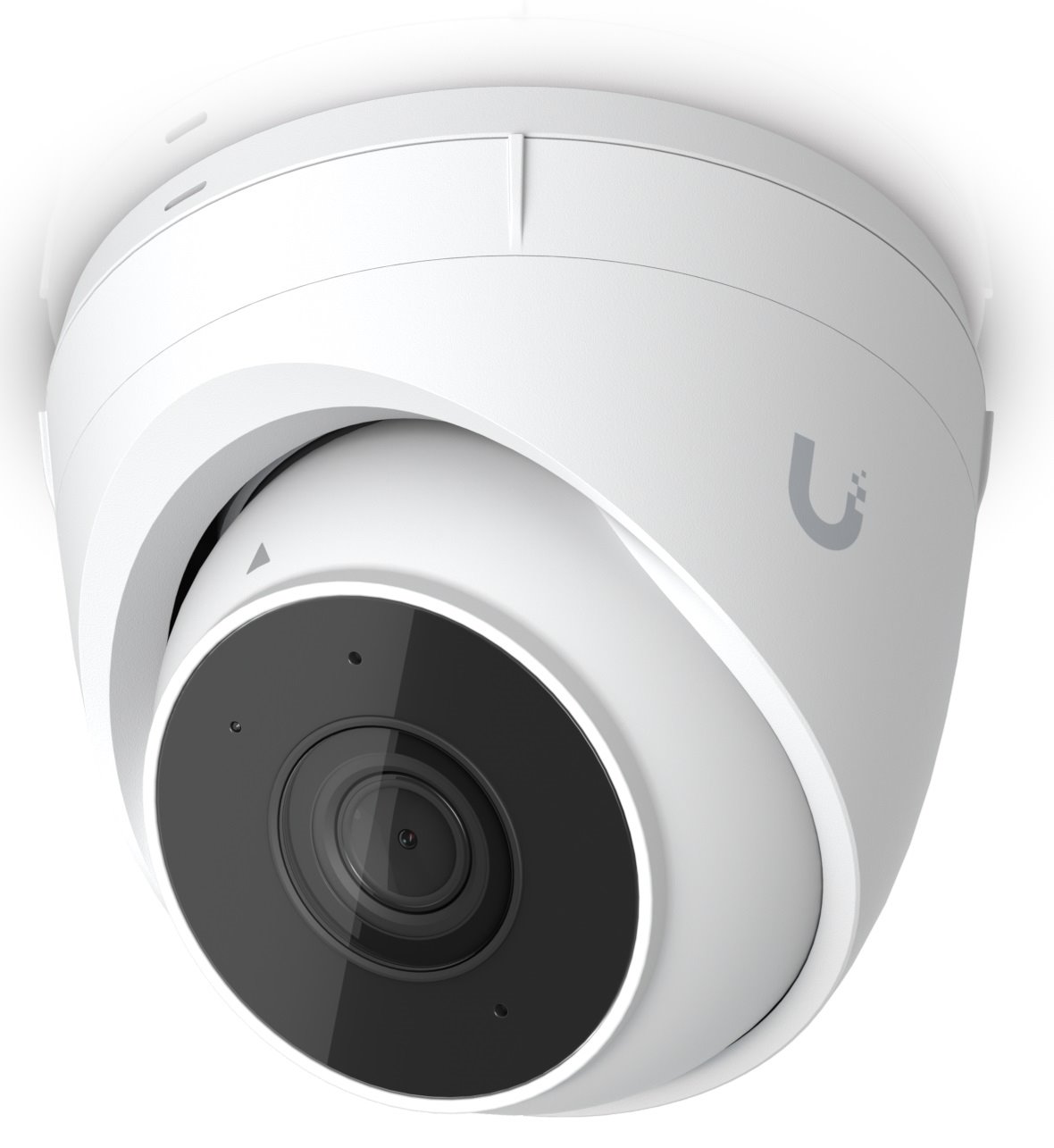

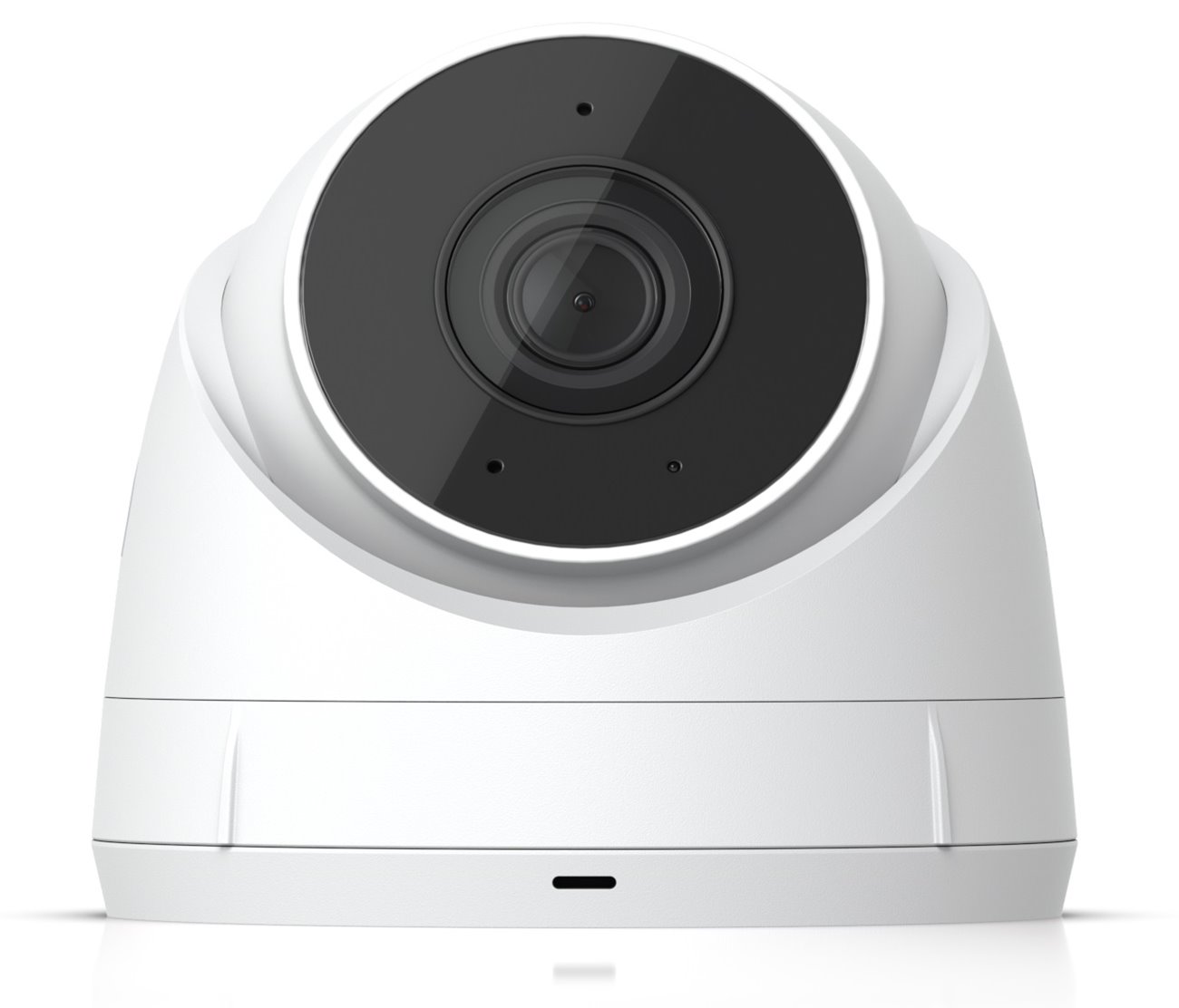

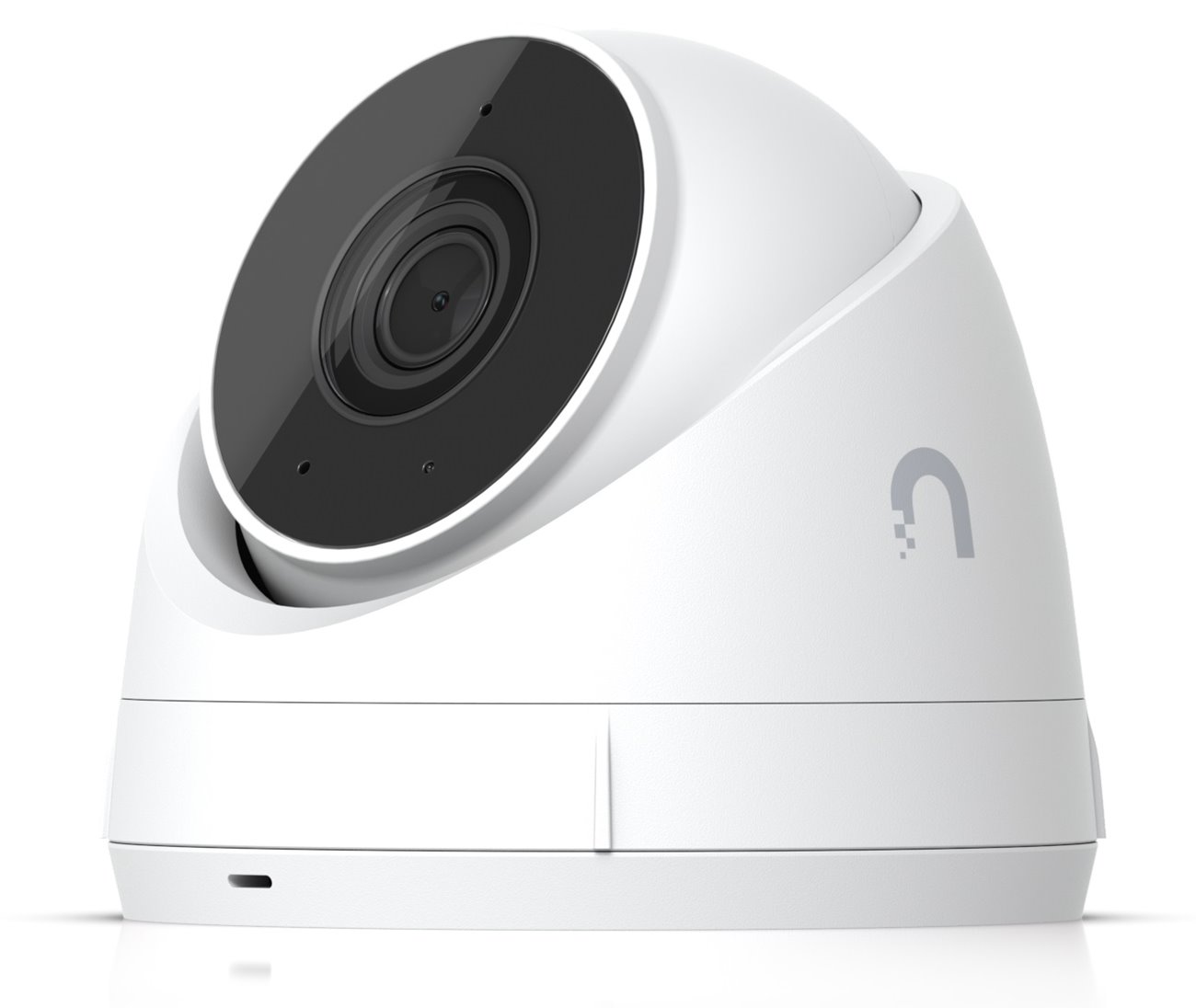

UVC-G5-Turret-Ultra is the 5th generation camera from the UniFi Video series. It has a 1/2.4" CMOS sensor with 4MP resolution (2688 x 1512 px, 16:9) @ 30 FPS. The fixed lens has a viewing angle of 102.4° horizontally, 54.9° vertically and 120.6° diagonally. The camera is equipped with microphone (can be disabled) and (1) 10/100Mbps Ethernet port through which the camera is powered using POE 802.3af or passive POE with input voltage 37 - 57 V DC. For night mode, the camera is equipped with an IR illuminator with a range of 30 m. Maximum power consumption is only 4 W!

Package contents

• Camera
• Weatherproof grommet
• Metal holder
• Set of screws and nuts with metric thread
• Set of screws and dowels
• Drilling template
• Security pin

Technical parameters

Camera

Lens type:Fixed
Illumination:IR
Illumination range [m]:30
Viewing Angle [°]:102
Day/night mode:IR cut filter
Image sensor ["]:1/2.4


Resolution:4MP
Max. resolution [pixels]:2688 x 1512

Connectors and Interfaces

Audio:Microphone
LAN speed:(1) 10/100Mbps

Power

Power over Ethernet:802.3af, 37 .. 57V DC
Power type:PoE
Max. power consumption [W]:4

Physical characteristics

Protection class:IP66
Purpose:Outdoor
Antivandal (Impact protection):IK4
Buttons:Reset
Operating temperature [°C]:-30 up to 50
Weight [g]:330
Width [mm]:90
Height [mm]:71
Depth [mm]:90
Color:White

General

Camera class:UniFi Protect
