Triax TOU-01S Antenna Outlet - (303693)
Please sign in so that we can notify you about a reply
Product description:
TOU - 01S terminated

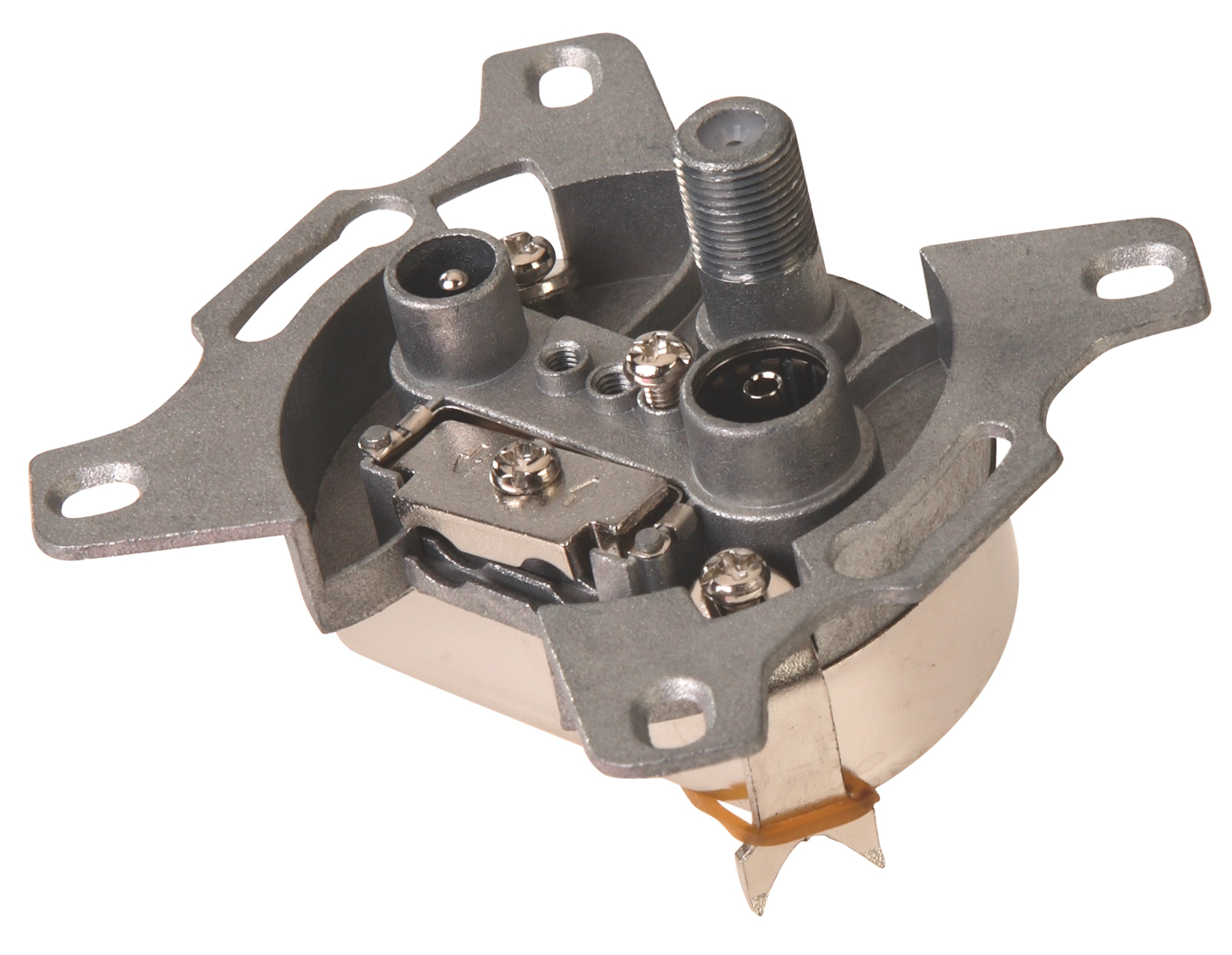

The TRIAX TOU series of outlets is made of diecast zinc, the coax IEC connectors fulfil the DIN 45325 and IEC 169 standards. The outlets can be built into a Ø60 mm round wall box or surface mounted by means of a TOU frame.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663036932 |
| SHIELDING | |
| Shielding factor UHF | >75 dB |
| Shielding factor VHF | >85 dB |
| CHARACTERISTICS | |
| Type | TOU |
| Outlet Type | Terminated |
| FREQUENCY | |
| Frequency Range FM | 87.5...108 MHz |
| Frequency Range TV | 5...74/120...862 MHz |
| Frequency Range SAT | 950...2250 MHz |
| LOSS | |
| >td >1.5 dB | |
| >td >2.0 dB | |
| >td >2.0 dB | |
| ISOLATION | |
| Isolation FM-SAT | > 40.0 dB |
| Isolation TV-FM | >15.0 dB |
| RETURN LOSS | |
| Return Loss FM | Cat. D *) dB |
| Return Loss TV | Cat. C *) dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Screening Efficiency | EN50083-2 (Class A) |
| DC Passthrough SAT | Yes (20VDC / 500mA) |
| CONNECTORS | |
| Connector IN | Saddle & Clamp (S&C) |
| Connector FM | IEC-female |
| Connector TV | IEC-male |
| Connector SAT | F-female |
| MECHANICAL | |
| Diameter | 60 mm |
| Dimensions product (H x D x W) | 70.6 x 70.6 x 21,9 mm |
| Packaging Height | 0,040 m |
| Packaging Width | 0,070 m |
| Packaging Depth | 0,070 m |
| Net Weight | 0,102 kg |
| Tara Weight | 0,015 kg |
| Total Weight | 0,117 kg |
| Remarks | *) According to CENELEC: C: 5-40 MHz > 14 dB, 40-862 MHz min. 14 dB - 1.5/oct. D: 5-862 MHz > 10 dB. |
